Scientific Instruments and Equipments
Product Description

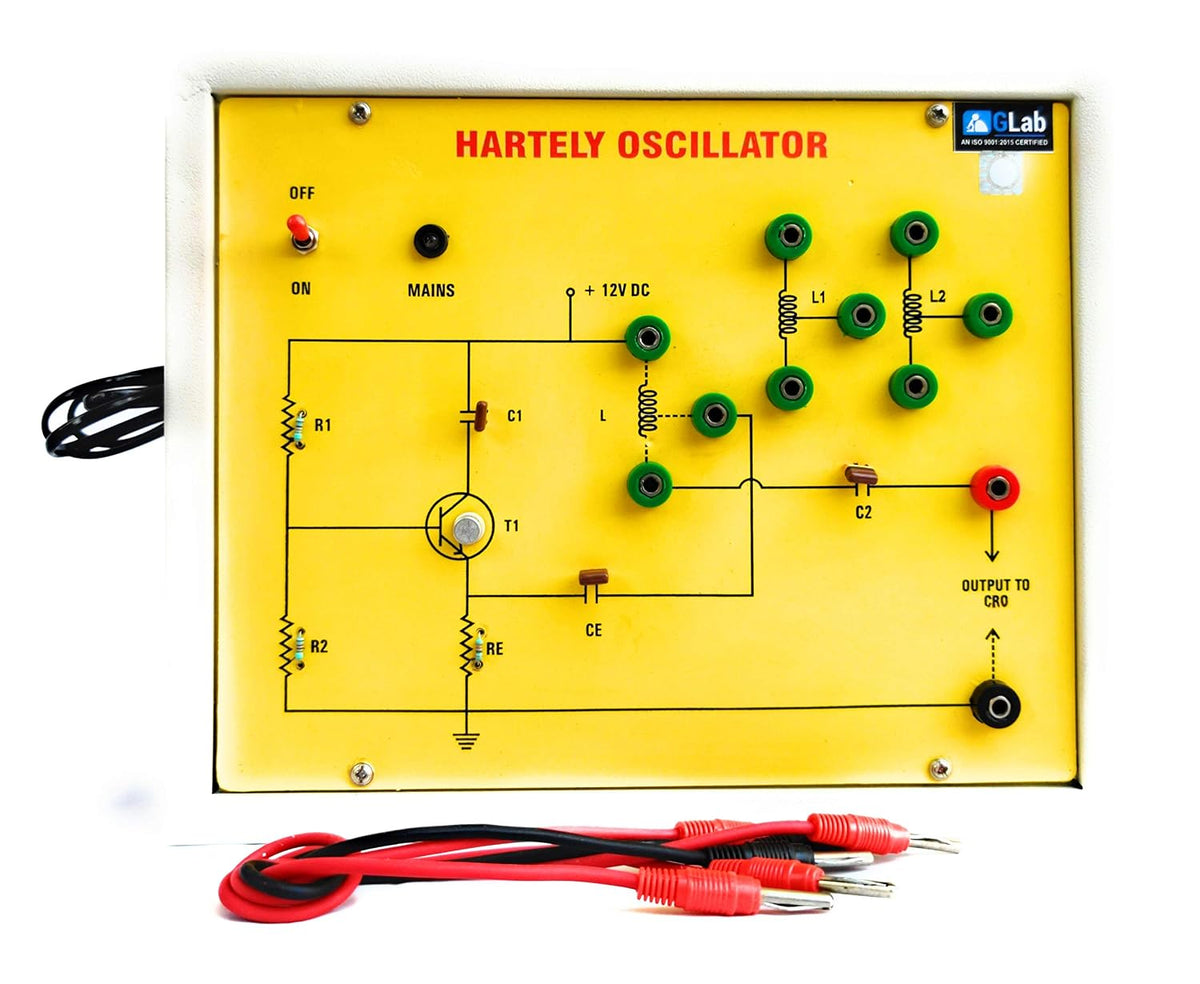

HARTLEY OSCILLATOR Apparatus
- Instrument comprises of 12V DC Regulated Power Supply, circuit diagram printed & components mounted on front panel.
- Hartley Oscillator consists of a parallel LC resonator tank circuit whose feedback is achieved by way of an inductive divider
- This Hartley Oscillator configuration has a tuned tank circuit with its resonant coil tapped to feed a fraction of the output signal back to the emitter of the transistor. Since the output of the transistors emitter is always “in-phase” with the output at the collector, this feedback signal is positive. The oscillating frequency which is a sine-wave voltage is determined by the resonance frequency of the tank circuit
- Useful in laboratory for experiments in Engineering college,Engineering lab, for I.T.I students, polytechnic students, scientific instruments,electronics apparatus
-
Package Content: 1 Hartley Oscillator Apparatus with user manual
