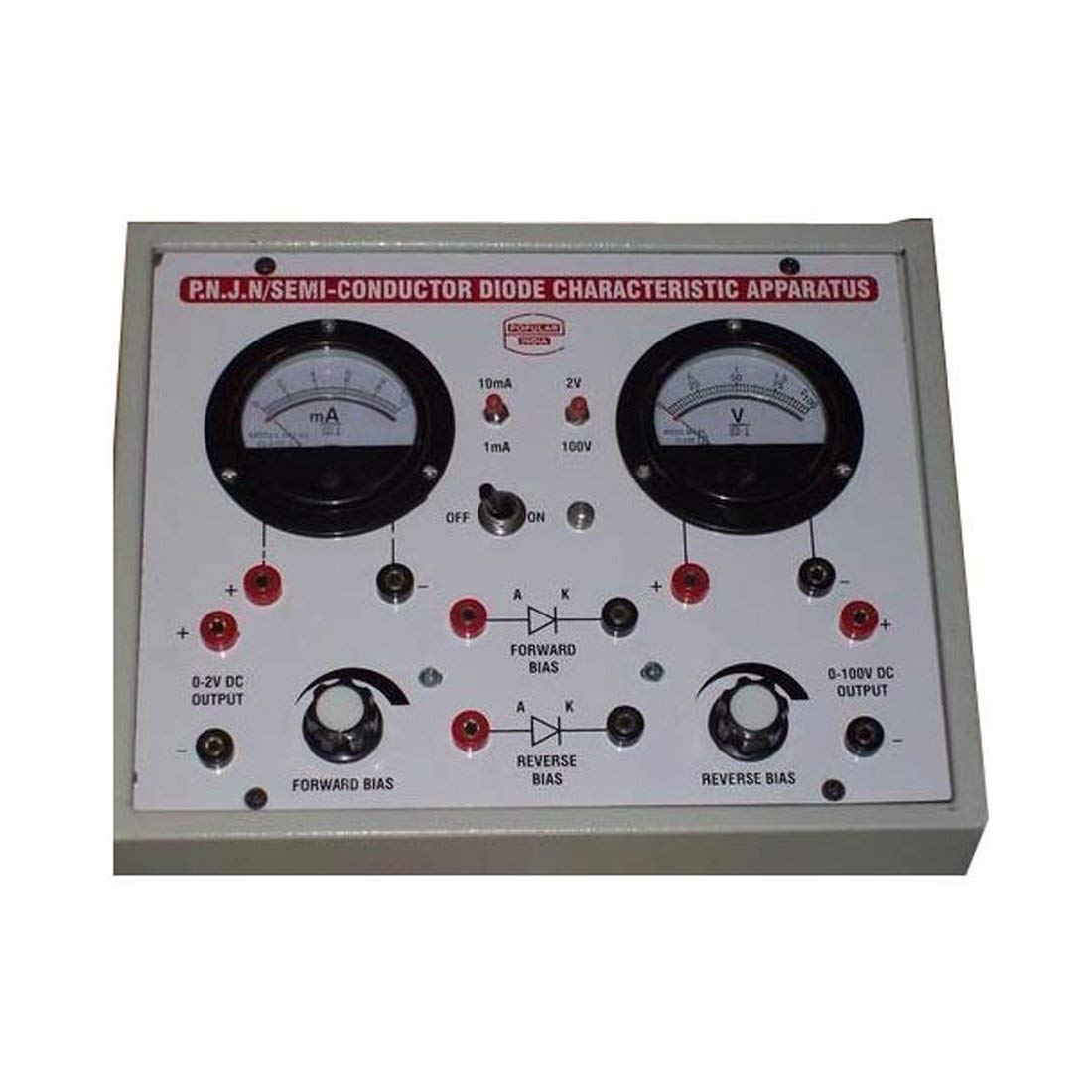

Junction Diode Semiconductor Diode Characteristics Apparatus
- Complete Diode Experiment Kit: Apparatus designed for plotting the forward and reverse bias characteristics of a PN Junction Diode, essential for physics and electronics laboratory experiments. Dimensions 10"x8"x4".
- Built-in Dual DC Power Supplies: Includes two continuously variable regulated DC power supplies (0-3 Volts and 0-30 Volts DC) for precise control during both forward and reverse bias testing.
- High-Accuracy Measurements: Features two built-in dual-range meters (Volt and Ampere/Microampere) to accurately measure voltage and current, with range selection provided by SPDT switches on the front panel.
- Ready-to-Use Setup: Comes with two mounted PN Junction Diodes inside the cabinet and connecting sockets/terminals brought out on the front panel for easy and efficient connection and plotting.
-
Protected & Reliable Operation: The regulated power supply offers protection against short circuit and over load, ensuring the longevity and safe operation of the apparatus for students and educators.
